Pfaff 463  Pfaff 483


Pfaff 463 Industrial Sewing Machine

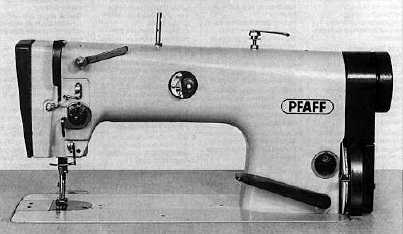

Pfaff 483 Industrial Sewing Machine


Model

483-G-8/01 BS

Manufacture

Germany.

Needle

Single.

Feed

Drop-feed.

Bobbin

Large

Feet

9mm clearance.

Reverse

Spring loaded, depress lever.

Speed

5500 stitches per minute max.

Stitch

Lockstitch.
4.5mm max. length, forward and reverse.

Lubrication

Oil pump with fresh oil reservoir.

Features

Reliable at top speed.
Excellent feeding with low foot pressure.
Smooth and quiet at top speed.
Mechanical bobbin case opener.
Double bearing mounted components (needle bar, take-up        lever, feed regulator).
Lifetime lubricated anti-friction bearings.
Pad-lubricated, fully enclosed gearcase.
Built-in adjusting gauges.

Main characteristic

Quality made, high-speed combined with big-bobbin.

Options

Most options available.

Uses

For all branches of sewing industry.


Model

463

Characteristic

Same as 483 series except does not have teflon coated needle-bar, has top speed of 5000 s.p.m., has standard bobbin.

Used Availability

Call or Email
